A paint mixing cart on wheels

A recent post in the Educational Theatre Association (EdTA) Open Forum about a mobile costume shop workstation was so cool that I decided to do a post here on a paint cart I designed years ago for a local theatre.

As I’ve said in previous posts, it always amazes me how many people in non-professional theatre seem to believe that a scene shop, by definition, has to be a disaster area. I’ve seen it in the two high schools I’ve designed for, as well as in colleges (where you would think the professors want to teach their students the correct way to do things) and at community theatres. And it’s worse when working with volunteers, who are often not instructed in proper shop practice or are only there for part of a work day. Sure there are notable exceptions, but, in my experience over the past thirty-odd years, the exceptions are few and far between.

By contrast, professional scene shops, and those in university professional training programs, tend to be very neat and organized. A professional shop I worked with was cleaned up twice a day: just before lunch and just before the end of the day. Even with several jobs going on at once, you never saw piles of stuff all over the place. Our shop in college, run by a retired movie and TV carpenter, was awesome, and the guy insisted on keeping it that way.

The purpose for this cart, which was built for a community theatre, was to mitigate the previous “practice” of having the paint cans and tools for the current show scattered all over the floor and work tables (wherever the last painter left them) and making it difficult to find what you needed when you needed it. Things were okay when professional scenic artists were hired, since they knew to put things back in the paint area, but even then one or more volunteers often didn’t know to put things back or didn’t bother.

The cart was built from scrap materials, mostly 3/4″ plywood, and had shelves on both sides for various-size paint cans, as well as plastic bins for tape, gloves, masks, chalk, and other accessories. It also had a rack at one end for extension poles, straightedges, yardsticks, and similar tools. Because it was on casters, it could be easily moved around the shop, or out onto the stage, as needed. The paint-can opener, which always tends to disappear, was tied to a string secured to the cart handle, and it never disappeared after that.

Paint cart 5_2
Paint cart 5_3

The cart ended up being just about four feet by two feet, by thirty inches high. Although some people still didn’t get the idea, it made keeping track of paint for the current show-under-construction a lot simpler. The rest of the paint stock, as well as accessories, tools, and supplies, was all stored on shelves in the paint shop.

Sometime after the cart was built and in use, I added a new feature to it.

A lot of scenic artists use music stands to hold their painters’ elevations while they work on a set. It keeps the documents safe, off the floor or work surfaces, and makes them easy to refer to while painting. So adding one to the cart seemed like a natural.

Rather can cannibalizing a perfectly good music stand, however, I made a simple one out of a closet pole and some scrap plywood. It had a simple tilting device on the back, held together by a bolt and a wingnut, and rode in one of the holes on the rack at the end of the cart.

Paint cart 4_2

Visiting scenic artists were delighted with this, as it gave them a safe and convenient place to keep their painters’ elevations and other reference materials.

In future posts I’ll be describing similar shop-made accessories that can make life much simpler and more productive. Stay tuned.





Advertisements

How to read a script like a set designer

This post was inspired by some recent projects, which in turn made me think about older ones and the people I worked with, and how they approached the process of designing and building a set.

One of the things that has really stood out for me over the years is how so many designer/TDs in non-professional theatre seem to look at a script in terms of “okay, so we need to build a such-and-such.” A few years ago, one of them didn’t seem interested at all in how the scenery units helped tell the story or how they worked in context with other units: he was just focused on the construction of individual pieces. And I found it surprising because he was also a good director and actor who paid close attention to the actors and their characters and motivations in the context of the story.

So how do we look at a script from the viewpoint of a set designer?

Start by understanding the story itself. Stories are about people, three-dimensional people who want something but can’t get it because there are obstacles in the way, so they have to figure out how to get past the obstacles. Whether it’s a play, a musical, an opera, a movie, a sitcom, a “reality show,” an election, or a sporting event, it’s all the same: somebody wants something and has to figure out what to do about it.

A set is nothing more than a physical environment in which the characters in the story show us how they approach getting past those obstacles. So the set not only has to make it physically possible for the story to take place, but hopefully also wants to give us a sense of the overall mood of the story and present us with a logical place for it. Watch your favorite TV show or movie and notice how characters’ homes and workplaces “fit” the characters and the nature of the story. Some years back there were snide comments about the lifeguards on Baywatch all having homes that nobody could afford on a lifeguard’s income. It was probably done to enhance the “glamorous” nature of the characters portrayed, but, still, it was distracting.

Here is where good set designers read the script two or three times before starting to draw anything. The first time is for the story itself and the other times are to understand what the story really requires in terms of the physical space and how it all works together. I covered some of this here in several previous posts.

The danger, as I’ve pointed out elsewhere, is that by thinking about scenery units (or props and furniture) out of context, they just become generic pieces. I’ve heard it many times: “We don’t have to build a staircase – we have one from last year. It’s about the right size and has a nice railing.” What can be (and often is) missed here is that last year’s staircase was from Willy Loman’s house and this year it’ll be in Daddy Warbucks’ mansion.

While reading the script, we also look for things like genre and mood. Is it a comedy, a drama, a mystery, a horror story, or something else? Is the mood happy, sad, tense, poignant, scary? These, and the nature of the story itself, are what clue us in as to whether the story wants a “realistic” set or a “non-realistic” set, a.k.a. a representational set or a presentational one.

These are some of the things I discuss at my first meeting with the director because I want to find out how he or she is approaching the story, and why. Too often I’ve seen a new director want a realistic set for something like a musical or a Shakespeare play, where realistic sets can come across as static and unimaginative. On the other hand, plays like Neil Simon comedies or Who’s Afraid of Virginia Woolf, can “feel” better in a “realistic” space.

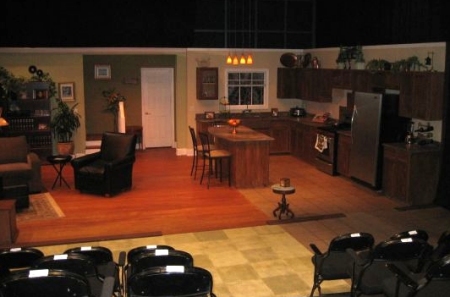

For instance, here’s part of a set I did years ago for David Lindsay-Abaire‘s play Rabbit Hole, which is about a young couple who lost their four-year-old son to a car accident. The director and I decided that we wanted the audience to focus on the sadness of the story, so we would avoid any theatricalism and create a fairly realistic space. The show was done in a black box.

On the other hand, here’s my set (under work lights) for J.B. Priestley’s An Inspector Calls, which is about an investigation into the suicide of a young factory worker and takes place in England during the Edwardian period. Here we wanted to show the wealth of the family who lived in the house and their isolation from the common people, and also pick up on the story’s sense of things being out of balance.

In both cases the research led to authentic period detailing, but the sets themselves had totally different feelings to jive with their stories and their characters.  You can read more about these sets on my web site, at www.georgefledo.net. And, for a good short intro to how we approach research for a set design, you can read my post here, at Research is an investment, not a luxury.

Once I have a good sense of how we want to approach the story, I can go back to the script to start defining the physical space. Many scripts include detailed stage directions or even floor plans, and there is an ongoing debate as to how much of this was included by the playwright and how much is just a record of the original production. A couple of years ago I contacted a few publishers to get their take on this, and the consensus was that, unless the contract specifically states otherwise, there is no requirement to follow any of it. You can read about this at The script, the set, and stage directions.

So, basically, that’s how we read scripts: start with the story, make sure we understand it and the director’s intent, and then delve into the details that we need to create a compelling physical space. As I mentioned above, several readings are usually necessary to get a really good mental picture of what kind of space will best serve the story. And I often keep referring to the script as I make design choices, looking for hints about the characters’ intentions.

Many times the characters themselves (not the actors, although that’s a separate conversation) will tell us what they need, but we have to be open to listening to them. For instance, in the set above for An Inspector Calls, the head of the household, Arthur Birling, loves to tell people that he used to be Lord Mayor of his town; he considers it just one more symbol of his status and importance. So I decided we would have a formal portrait of him, in full mayoral regalia, hanging over the fireplace. That way, when he tells the Inspector about his former title, he can point to the portrait. The director loved the idea, as it would help show Arthur’s pompous personality.

If you’d like a little more on the design process itself, please check out one of my original posts here, A set design from start to finish.



The scene shop, part 1: general layout

Now and then I see a post in the Educational Theatre Association (EdTA) open forum regarding ideas for a new scene shop, or tools, or something related, so I decided to do a few pieces here. This first one is about scene shops in general and subsequent ones will be about work areas, storage areas, and related subjects.

First off, a scene shop is nothing more than a dedicated place to build custom items which may be made of wood, plastic, metal, or other materials. The process, the tools, the ideal layout, and everything else are pretty much the same as in any other custom shop that specializes in these materials, the main difference being that the scene shop is used to build scenery instead of cabinetry, furniture, or other products. So we’ll look at a scene shop with that perspective in mind.

Workflow and layout

Like in other shops, the workflow in a scene shop is very straightforward: the raw materials come in “at one end” and the finished products go out “at the other end.” In between, the materials get stored temporarily, get cut to size and otherwise worked, get assembled, and get stored temporarily again until they get painted. Then they get painted, and, finally, they move onto the stage to get installed. Later, after the show closes, the pieces may come back and get disassembled.

And there are usually two or more projects (individual pieces of scenery) going on at once.

So, ideally, the shop layout should reflect the workflow: the raw material comes in at the loading dock end and the finished pieces go out the other end onto the stage. This suggests a long skinny room, but of course most scene shops aren’t built this way (most of the ones I’ve seen are either square or close to it). The idea, however, can still work with a little planning and/or rearranging of the existing equipment.

If you already have a shop, a good way to see if it is laid out with workflow in mind is to observe the construction crew during a typical show. How often do they have to move materials and piece parts from one place to another and back again? Some movement is of course inevitable, but (for instance) if you have to bring new plywood sheets to the back of the shop for storage and then bring them to the front again because that’s where the table saw is, you may want to consider a little re-arranging. Or if the paint area is at the back of the shop and the stage door is at the front, or if you have to run an obstacle course to get to the panel saw or radial arm, or if the best place for assembly is taken up by a large stationary power tool. But you get the idea. And don’t laugh: I’ve seen all these instances and many more.

One thing to avoid whenever possible is storing scenery, props, or other items in the shop. Unless the room was deliberately planned large enough to have dedicated areas for storage, what often happens is that it becomes a warehouse and leaves very little space for work. I’ve seen a few (large) shops that were so full of stored stuff that there was hardly any place to work; even the work tables were piled with props and other items, so layouts had to be done on the floor — and there was very little of that.

Flexibility

A major factor to consider when planning a shop is flexibility. Some pieces of scenery are fairly small and others may be huge, and sometimes you get some of one and some of the other, plus everything in between. The best way to deal with this is to dedicate a large open space strictly for assembly, and then to put as many of the power tools as possible on casters so they can be moved out of the way if necessary. I’ve seen a few shops where the table saw and other large tools are in the worst possible places, but they can’t be easily moved due to the placement of electrical outlets and dust collection systems. Their placement also cuts down on open space for assembling large pieces.

I’ll go more into this in the next two posts.

Resources

There are lots of resources available on how to set up a wood shop: books, magazines, online articles, and videos, and they are great for generating ideas; some even show actual or suggested floor plans and designs for storage cabinets. I have a workshop in my garage (I don’t build scenery or props at home, but woodworking has been a hobby since high school), and I consistently find great tips and ideas in these resources. Some of my favorite ones are listed in the Resources page of this blog, and there are lots more.  I’ve seen a few pieces on how to set up a scene shop too, mostly in the older books, but unfortunately they were either very specific or are totally outdated.

The revolve in “Hamilton”

Revolves have been around for a long time and can be very effective, but so often they are used simply to change a setting quickly, or they become construction projects that take on a life of their own and serve mostly as toys for the more engineering-oriented members of the shop crew. This morning I found a great article on the revolves used in Hamilton and how they are used to help tell the story.

Even more interesting, reading between the lines in the article, I started getting ideas for how other pieces of equipment or scenery can also be used to help tell the story. But, as detailed in the article, it takes some serious collaboration between the director and the set designer — and, in the case of Hamilton, the choreographer —  to fully develop the idea. One comment I especially liked was to the effect that the revolves and the action and choreography were so tightly integrated that you could not tell where one left off and the other took over.

The article is in the USITT archives as a publicly-available portion of the Winter 2017 issue of Theatre Design and Technology. I don’t know how long USITT will keep it available to the public at no charge, but here’s the link:

http://www.nxtbook.com/nxtbooks/hickmanbrady/tdt_2017winter_public/index.php

Enjoy!

Get to the root of the problem

When I came up with the idea for this post, I thought maybe I should send it to The Huffington Post instead of placing it here.  🙂

As I’ve said in previous posts, I often find the solution to a problem, or the answer to a question, in a totally unexpected place. Case in point: the United Airlines passenger who was dragged off the plane in Chicago some weeks ago. Did United ever go back and take a good look at the real cause for the incident?

Was it a real “doo-doo happens” emergency? Was it a scheduling error? Did somebody drop the ball? Did the software crash? Did somebody misunderstand a supervisor’s instructions? Was it a last-minute knee-jerk reaction by a manager somewhere? Did four crew members get sick at the same time in Louisville?

Obviously, I don’t know if they ever found that first domino. But, putting aside my own personal experience with this airline, I would like to think that they, or anyone else, would want to dig back, if only to learn something from it and try to figure out how to prevent a similar incident in the future.

Now, putting this in the context of set design and tech. I ran into a similar issue years ago when I designed the sets for The Odd Couple and the show immediately following, Play It Again Sam. I wrote about how we used the same set for both shows in Two shows on one set (re-tasking a set) so I won’t repeat it here. But we had a very simple problem right up front — that would have been very simple to solve — which created other problems down the line. Unfortunately, even though we did discuss it afterwards, the real reason for the problem was not addressed: it wouldn’t have been “politically correct” to do so. So similar problems continued to occur.

Briefly, the structure called for a series of platforms to go right up to the back wall of the stage. From there, flats and platforms would angle downstage to form a box set, which would terminate just behind the proscenium wall on both sides of the stage. I designed it that way to simplify the look, as the entire set would be behind the proscenium arch. But, because we were using the same set for the second show (which required several secret panels), the position of the walls relative to the platforms, steps, escapes, and other elements was critical. Plus, of course, there were parts of the theatre building which could not move.

The problem began when the TD left two inexperienced carpenters to begin assembling the platforms while he went to lunch. By the time he came back, a number of platforms were up and connected, but there was about a four-inch gap between the back edge of the platforms and the back wall. This was due to a decision the carpenters made, and by not following the instructions. I pointed out the gap to the TD, but he didn’t want to correct it, as he felt it would take too long and not really create any problems later.

To make a long story short, pushing the set downstage by those four inches created several problems. Because of the angles and steps, the secret panels had to be modified, which meant revising some of the architectural details. But the panels could only be shifted so much, which now meant it was awkward to go through a couple of them. Then, because the set could not now end behind the proscenium arch, I had to re-design the DS termination, which involved building and painting new flats. And of course, that four-inch gap at the back wall had to be closed to avoid anybody stepping in it.

The final score: several new pieces had to be built, painted, and installed, and the gap had to be closed, all of which took longer and cost more than it would have taken to move those platforms when the TD came back from lunch.

We discussed it afterwards — the managing director, the TD, and me — but the message didn’t get through. Nothing was learned from the experience. And yes, similar things happened several times afterwards.

Back in college and grad school, and certainly at a professional scene shop where I worked for six years, the TD or his equivalent would have made those carpenters take the platforms apart and place them per the drawings. That is, after reading them the riot act.

But so often nowadays we don’t seem to be willing to correct errors or even to admit them. Which is too bad, because understanding why mistakes happen is a great way to learn from them and reduce the chances of their happening again.





The punch list

I know… I know… the first time I heard this term (very soon after I started working in the architectural field)  I had a couple of interesting mental pictures too. And of course they were based on that too-often-asked question, “Whose fault was it?”

But a punch list is nothing more than a list of things that need to be completed before the project is handed over to the client. Generally, when a building contractor tells a client that the job is “substantially complete,” he (or the architect) also provides a list of items that still need to be addressed. Maybe a piece of carpeting keeps pulling up, or a door needs to be plumbed, or an A/C diffuser needs to be moved… or someone hit a wall with a cart and the drywall needs to be repaired. Making these lists is a standard practice in the industry, and what it does is make accounting for these items a formal, expected part of the process instead of a last-minute finger-pointing exercise.

I’ve never seen this term used in theatrical companies (although I’ve tried to introduce it several times, with often limited success), but, in reality, I’ve found that the TD or shop foreman, or designer, often does make up a list before opening. The main difference I’ve noted is that this list, and the response to it, is often seen as a negative (again, “Whose fault was it?”) instead of just being part of the process of building and installing a set.

I don’t know where or how the term “punch list” originated, but an article on it in Wikipedia says that the term probably comes

“from the historical process of punching a hole in the margin of the document, next to one of the items on the list. This indicated that the work was completed for that particular construction task. Two copies of the list were punched at the same time to provide an identical record for the architect and contractor.”

(I mention this in case you want to introduce the concept in your own company but people object to the term “punch”  — which I’ve seen happen.)     🙂

I’ve written here several times that, if a set construction project is managed well and given enough time, the set can be pretty much ready to go by First Tech, which is usually the weekend before opening night. If this happens, then Tech Week, for the shop, becomes just a time to go through the punch list and take care of all those little details that’ll make the set look finished and become a valuable part of the story.

Problem solving: slam the door, don’t shake the wall

Every now and then a director will want a character to slam a door as he enters or leaves a room. It can be a very dramatic moment, but too often the entire wall shakes when the door gets slammed. Not good.

Fortunately, there’s an old trick to help prevent this, and it consists simply of having the door flat and the framed door be separate units and not attached to each other.

Here’s the back of the door flat. I’m showing a “Broadway” style flat, although this works with “studio flats” too:



door-slam-2

And here’s the self-contained door unit, complete with front molding and a brace:

door-slam-1

Here are the two pieces in place:

door-slam-3

And here’s a cross-section thru the door and flat, looking down:

door-slam-4_1

All you really need to allow is about a quarter-inch gap, all around, between the framed door and the door flat, including the molding. Depending on the set design and the sight lines, you can have one or two braces on the door unit, secured to the floor with a sandbag or bracket (although of course you don’t want to create any tripping hazards). The wall flats are then braced as they would normally be in your case.

The same idea can be used for a window or any other framed opening. It’s a simple trick and will help keep the audience focused on the story and not get distracted by a shaking wall.
